SMC · Linear Actuators

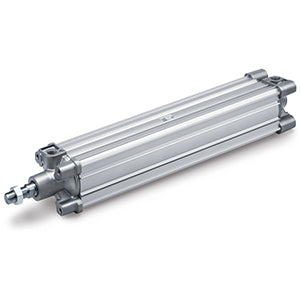

CP96SDB125-700W
excl. VAT · €888,74 incl. 20% VAT (BG)
Free delivery from €200
Free delivery from €200
Genuine SMC part · official SMC partner
VAT invoice, pay by card or bank transfer
Delivery up to 2 weeks
Need volume pricing or a special version? Request a quote →
| Part number | CP96SDB125-700W |
|---|---|
| Tie Rod | None |
| Stroke | 700 |
| Magnet | D (Built-in) |
| Rod | W (Double Rod) |
| Rod End Options | None |
| Auto Switch | No Switch |
| Mounting | B (Basic, w/o Bracket) |
| Bore Size | Ø125 |
| Rod Boot | None |
| Made of Stainless Steel (-XC68) | None |
| Lead Wire or Prewired Connector | 0.5m [Or None in the Case of No Switch] |
| Fluororubber Seal | None |
| Number | 2 pcs. [Or None in the Case of No Switch] |
| Temperature Resistance | None |
| Lead time (days) | 6 |
| Minimum order quantity | 1 |
| Country of origin | ES |
| TARIC code | 8412310090 |
- This product is being discontinued and will be replaced by CP96-C (ø32-ø100) series.
- With the expansion of our Series C(P)96 ISO range, we can now offer our customers even greater flexibility and cylinder performance. Now available in a non rotating rod type (CP96K(W)/C96K(W)), these cylinders offer great precision and deliver non-rotating accuracy of ±0.5º or ±0.3º in Ø32 to Ø63 or Ø80 and Ø100 bore size respectively. Also, we have introduced a smooth cylinder type, with reduced piston sliding resistance (C96Y) which is particularly suitable for transfer applications requiring smooth movements at low pressure. For applications in explosive atmospheres, the C(P)96 range is now available in an ATEX compliant version (55-C(P)96 which meets ATEX category zone 2, or category zone 3 when fitted with an auto-switch). With a growing range of "made to order" options available as standard and a choice of rod boot materials, there has never been a better time to check out our Series C(P)96 cylinder range.
Key features
- Double acting, standard type, single or double rod
- Bore sizes (mm): 125
- Maximum stroke 2000mm
- Auto switch capable
