SMC · Specialty Actuators

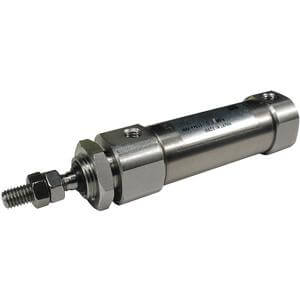

CJ5B10SV-100
excl. VAT · €105,00 incl. 20% VAT (BG)
Free delivery from €200
Free delivery from €200
Genuine SMC part · official SMC partner
VAT invoice, pay by card or bank transfer
Delivery up to 2 weeks
Need volume pricing or a special version? Request a quote →
| Part number | CJ5B10SV-100 |
|---|---|
| Mounting | B (Basic Style) |
| Bore Size | 10mm |
| Stroke | 100 |
| Lead Wire or Prewired Connector | 0.5m (Or None in the Case of No Switch) |
| Number | 2 pcs. (Or None in the Case of No Switch) |
| Magnet | None |
| Head Cover Port | 90° to Axis |
| Seal Material | V (FKM) |
| Auto Switch | w/o switch, w/o magnet |
| Lead time (days) | 22 |
| Minimum order quantity | 1 |
| Country of origin | JP |
| TARIC code | 8412310090 |
- The CG5-S series is a stainless steel cylinder that uses grease for food processing machines that meets FDA standards. The CG5-S series can be disassembled for replacement of seals which extends the service life of the cylinder. All stainless steel specification for external parts. Mounting bracket surfaces have been electropolished, making them smoother to prevent build-up of liquids and foreign matter. Plugs are provided for unused mounting threads to prevent residue build-up in the threads.
Key features
- Double acting, single rod CJ5-S cylinder
- All stainless steel external parts
- Bore sizes (mm): 10, 16
- Auto switch capability
