SMC · Linear Actuators
CG5BN80TFSV-250
excl. VAT · €611,17 incl. 20% VAT (BG)
Free delivery from €200
Free delivery from €200
Genuine SMC part · official SMC partner
VAT invoice, pay by card or bank transfer
Delivery up to 2 weeks
Need volume pricing or a special version? Request a quote →
| Part number | CG5BN80TFSV-250 |
|---|---|
| Magnet | None |
| Mounting | B (Basic Style) |
| Style | N (Non-lube Rubber Cushion) |
| Bore Size | 80mm |
| Thread | TF (G Ports) |
| Seal Material | V (FKM) |
| Stroke | 250 |
| Auto Switch | None |
| Lead Wire or Prewired Connector | 0.5m (Or None in the Case of No Switch) |
| Number | 2 pcs. (Or None in the Case of No Switch) |
| Rod End Options | None |
| Temperature Resistance | None |
| Lead time (days) | 3 |
| Minimum order quantity | 1 |
| Country of origin | ES |
| TARIC code | 8412310090 |

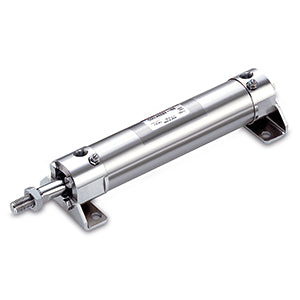

- SMC's CG5-S series is a stainless steel cylinder, perfect for use in wash down applications such as food processing machinery requiring intense cleaning. The use of non-toxic additives allows confident use in equipment for foods, beverages and medical products, etc. The CG5-S can be disassembled, allowing replacement of seals, which promotes an extended service life. SMC provides plugs for unused mounting threads to prevent residue build-up in the threads. The use of stainless steel (SUS304) on external metal parts provides improved corrosion resistance in environments with exposure to water.
Key features
- Double acting, single rod CG5-S cylinder
- All stainless steel external parts
- Special scraper prevents water from entering cylinder
- Bore sizes (mm): 20, 25, 32, 40, 50, 63, 80 and 100
- Auto switch capability
