SMC · Linear Actuators

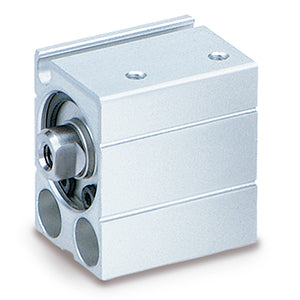

CDUJS16-35D
excl. VAT · €50,32 incl. 20% VAT (BG)
Free delivery from €200
Free delivery from €200
Genuine SMC part · official SMC partner
VAT invoice, pay by card or bank transfer
Delivery up to 2 weeks
Need volume pricing or a special version? Request a quote →
| Part number | CDUJS16-35D |
|---|---|
| Clean Series | Without Clean Series |
| Magnet | D (Built-in Magnet) |
| Mounting Direction | S (Axial Mounting) |
| Bore Size | 16 |
| Stroke | 35mm |
| Action | D (Double Acting) |
| Rod End Thread | Rod End Female Thread (w/o Thread for ø4) |
| Auto Switch | No Switch |
| Lead Wire or Prewired Connector | 0.5m (Or None in the Case of No Switch) |
| Number | 2 pcs. (Or None in the Case of No Switch) |
- Bore sizes (mm): 4, 6, 8, 10, 12, 16, 20
- Strokes up to 50 mm
- Auto-switch capable
- Multiple direct mounting surfaces.
Key features
- Miniature free mount <LI>Space saving compact cylinder <LI>Available in 4mm to 20mm bore size.
