SMC · Rotary Actuators

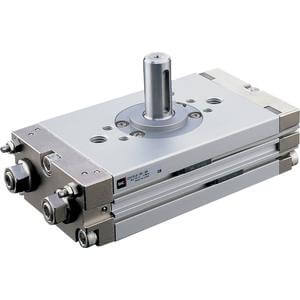

CDRQ2BS40TF-90
excl. VAT · €486,34 incl. 20% VAT (BG)
Free delivery in BG from €80
Free delivery in the EU from €200
Genuine SMC part
| Part number | CDRQ2BS40TF-90 |
|---|---|
| Magnet | D (Magnet) |
| Shaft Type | S (Single Shaft) |
| Size | 40mm |
| Thread Type | TF (G 1/8) |
| Rotation Angle | 90 (80° to 100°) |
| Air Cushion | Rubber Bumper |
| Auto Switch | No Switch |
| Lead Wire or Prewired Connector | 0.5m (Or None in the Case of No Switch) |
| Number | 2 pcs. (Or None in the Case of No Switch) |
| Lead time (days) | 23 |
| Minimum order quantity | 1 |
| Country of origin | JP |
| TARIC code | 8479899790 |
- Low-profile rotary actuator
- Sizes: 10, 15, 20, 30, 40
- Rotating angle: 90°, 180°, 360°
- Adjustable rotation time range: from 0.2 to 1 s/90°
- Low-speed version available.
Key features
- Low profile.
- Both single shaft and double shaft are available in all sizes.
- 2 auto switches are mountable on the same side.
- Rotating angle adjusting range: 350° to 370°.
- Options include magnet, shaft type, port thread style, and air cushion.
