SMC · Rotary Actuators

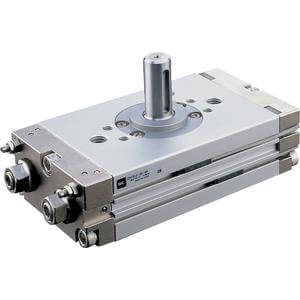

CDRQ2BS40TF-180C
excl. VAT · €536,30 incl. 20% VAT (BG)
Free delivery from €200
Free delivery from €200
Genuine SMC part · official SMC partner
VAT invoice, pay by card or bank transfer
Next-business-day delivery in Bulgaria for in-stock parts
In stock
Need volume pricing or a special version? Request a quote →
| Part number | CDRQ2BS40TF-180C |
|---|---|
| Magnet | D (Magnet) |
| Shaft Type | S (Single Shaft) |
| Size | 40mm |
| Thread Type | TF (G 1/8) |
| Rotation Angle | 180 (170° to 190°) |
| Air Cushion | C (Air Cushion) |
| Auto Switch | No Switch |
| Lead Wire or Prewired Connector | 0.5m (Or None in the Case of No Switch) |
| Number | 2 pcs. (Or None in the Case of No Switch) |
| Lead time (days) | 5 |
| Minimum order quantity | 1 |
| Country of origin | JP |
| TARIC code | 8479899790 |
- Low-profile rotary actuator
- Sizes: 10, 15, 20, 30, 40
- Rotating angle: 90°, 180°, 360°
- Adjustable rotation time range: from 0.2 to 1 s/90°
- Low-speed version available.
Key features
- Low profile.
- Both single shaft and double shaft are available in all sizes.
- 2 auto switches are mountable on the same side.
- Rotating angle adjusting range: 350° to 370°.
- Options include magnet, shaft type, port thread style, and air cushion.
