SMC · Rotary Actuators

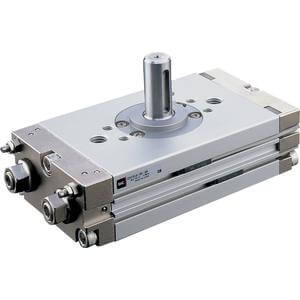

CDRQ2BS15-180
excl. VAT · €263,63 incl. 20% VAT (BG)
Free delivery from €200
Free delivery from €200
Genuine SMC part · official SMC partner
VAT invoice, pay by card or bank transfer
Delivery up to 2 weeks
Need volume pricing or a special version? Request a quote →
| Part number | CDRQ2BS15-180 |
|---|---|
| Magnet | D (Magnet) |
| Shaft Type | S (Single Shaft) |
| Size | 15 Mm |
| Thread Type | M5 (10, 15) |
| Rc 1/8 (20, 30, 40) | |
| Rotation Angle | 180 (170° to 190°) |
| Air Cushion | Rubber Bumper |
| Auto Switch | No Switch |
| Lead Wire or Prewired Connector | 0.5m (Or None in the Case of No Switch) |
| Number | 2 pcs. (Or None in the Case of No Switch) |
| Lead time (days) | 5 |
| Minimum order quantity | 1 |
| Country of origin | JP |
| TARIC code | 8479899790 |
- Low-profile rotary actuator
- Sizes: 10, 15, 20, 30, 40
- Rotating angle: 90°, 180°, 360°
- Adjustable rotation time range: from 0.2 to 1 s/90°
- Low-speed version available.
Key features
- Low profile.
- Both single shaft and double shaft are available in all sizes.
- 2 auto switches are mountable on the same side.
- Rotating angle adjusting range: 350° to 370°.
- Options include magnet, shaft type, port thread style, and air cushion.
