SMC · Rotary Actuators

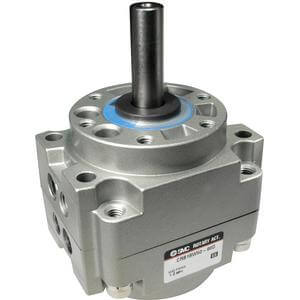

CDRB1BW80-100D-XF
excl. VAT · €585,02 incl. 20% VAT (BG)
Free delivery in BG from €80
Free delivery in the EU from €200
Genuine SMC part
| Part number | CDRB1BW80-100D-XF |
|---|---|
| Magnet | D (Magnet) |
| Mounting | B (Basic) |
| Shaft Type | W [Double shaft (Long shaft key & Four chamfers)] |
| Body Size | 80mm |
| Rotation Angle, Vane | 100D (Rotation Angle: 100; Vane Style: Double) |
| Port Location | Side |
| Auto Switch | No Switch |
| Lead Wire or Prewired Connector | 0.5m (Or None in the Case of No Switch) |
| Number | 2 pcs. (Or None in the Case of No Switch) |
| Port Threads | XF (G) |
| Lead time (days) | 28 |
| Minimum order quantity | 1 |
| Country of origin | JP |
| TARIC code | 8479899790 |
- Torque up to 150 Nm
- Rotating angles: 90°, 100°, 180°, 190°, 270°, 280°
- Many variations of shaft-end shape (7 types)
- Port location can be selected: Side or Axial ported
- Direct/Foot mounting
- Many made to order options available.
Key features
- Rotary actuator, vane type <LI>Compact, space saving body <LI>Direct mount applications possible <LI>Highly reliable <LI>Body side and axial direction ports <LI>Unrestricted auto switch mounting positions
