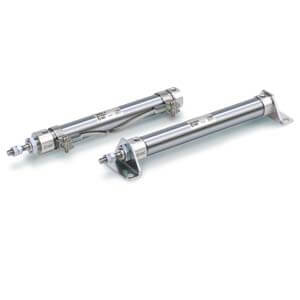

Round Air Cylinder, Single/Double Acting, Single/Double Rod, Non Rotating, Direct Mounting, and Built-in Speed Controller options.
Bore sizes (mm): 6, 10 and 16.
Strokes up to 400 mm.
Many head covers and mounting brackets available as standard.
Fine adjustment of the auto switch position by just loosening one screw.
2-colour indication solid state auto switches can be mounted.
Rubber bumper / Air cushion.
Many made to order available.
Key features
Standard double acting single rod.<LI>Bore sizes: 6, 10, 16 (mm)<LI>Strokes from 15mm through 400mm depending upon bore size.<LI>Mounts: basic, foot, front flange, double clevis.<LI>Part numbers with rod end bracket and/or pivot bracket available.<LI>Variety of switches and a variety of lead wire lengths.
Specifications
Magnet: D (Built-in)
Mounting: B (Basic)
Bore Size: 16mm
Stroke: 35
Cushion: Rubber Cushion
Head Cover: R (Axial)
Pivot Bracket: None
Rod End Bracket: None
Auto Switch: No Switch
Lead Wire or Prewired Connector: 0.5m (Or None in the Case of No Switch)
