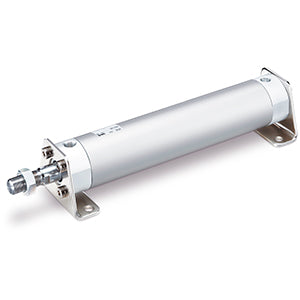

CG1-Z1, Air Cylinder, Standard Type, Single Acting, Spring Return/Extend – CDG1ZN25-200SZ1

• Bore sizes (mm): 20, 25, 32, 40, 50, 63, 80, 100
• Strokes up to 1500 mm
• Improved piping flexibility
• Mounts: basic, foot, front or rear flange, front or rear trunnion, clevis
• Auto switch capable with a variety of lead wire lengths.

Key features

• Standard: Single acting
• Bore sizes (mm): 20, 25, 32, 40, 50, 63
• Strokes up to 300 mm.

Specifications

• Stroke: 200
• Action: S (Single Acting, Spring Return)
• Magnet: D (Built-in Magnet)
• Pivot Bracket: None
• Auto Switch: No Switch
• Made to Order: None
• Mounting: Z (Basic, w/Trunnion Mounting, Female Thread)
• Bore Size: 25mm
• Lead Wire or Prewired Connector: 0.5m (Or None in the Case of No Switch)
• Number: 2 pcs. (Or None in the Case of No Switch)
• Rod End Bracket: None
• Rod End: Male Rod End
• Port Thread Type: Rc

Additional information

• Part number: CDG1ZN25-200SZ1
• Lead time (days): 28
• Minimum order quantity: 1
• Country of origin: JP
• TARIC code: 8412310090

Documents

• Catalogue (PDF)
• CAD model
• Operation manual
