SMC · Linear Actuators

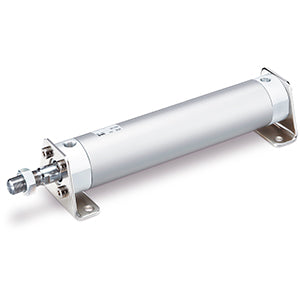

CDG1ZN25-150TZ1
excl. VAT · €100,81 incl. 20% VAT (BG)
Free delivery from €200
Free delivery from €200
Genuine SMC part · official SMC partner
VAT invoice, pay by card or bank transfer
Delivery time: On request
Need volume pricing or a special version? Request a quote →
Total
| Part number | CDG1ZN25-150TZ1 |
|---|---|
| Stroke | 150 |
| Action | T (Single Acting, Spring Extend) |
| Magnet | D (Built-in Magnet) |
| Pivot Bracket | None |
| Auto Switch | No Switch |
| Made to Order | None |
| Mounting | Z (Basic, w/Trunnion Mounting, Female Thread) |
| Bore Size | 25mm |
| Lead Wire or Prewired Connector | 0.5m (Or None in the Case of No Switch) |
| Number | 2 pcs. (Or None in the Case of No Switch) |
| Rod End Bracket | None |
| Rod End | Male Rod End |
| Port Thread Type | Rc |
| Lead time (days) | 28 |
| Minimum order quantity | 1 |
| Country of origin | JP |
| TARIC code | 8412310090 |
- Bore sizes (mm): 20, 25, 32, 40, 50, 63, 80, 100
- Strokes up to 1500 mm
- Improved piping flexibility
- Mounts: basic, foot, front or rear flange, front or rear trunnion, clevis
- Auto switch capable with a variety of lead wire lengths.
Key features
- Standard: Single acting
- Bore sizes (mm): 20, 25, 32, 40, 50, 63
- Strokes up to 300 mm.
