SMC · Linear Actuators

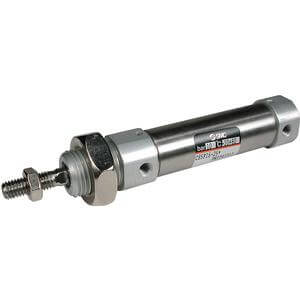

CD85F10-400-B-X2018
excl. VAT · €65,11 incl. 20% VAT (BG)
Free delivery in BG from €80
Free delivery in the EU from €200
Genuine SMC part
| Part number | CD85F10-400-B-X2018 |
|---|---|
| Low Speed | None |
| Stroke | 400 |
| Long Stroke | X2018 (Long Stroke) |
| Magnet | D (Built-in) |
| Rod End Options | None |
| Auto Switch | No Switch |
| Cushion | Rubber Cushion |
| Mounting | F (Boss Cut) |
| Bore Size | Ø10 mm |
| Rod Boot | None |
| Lead Wire or Prewired Connector | 0.5m (Or None in the Case of No Switch) |
| Number | 2 pcs. (Or None in the Case of No Switch) |
| Stainless Steel | None |
| Temperature Resistance | None |
| Auto Switch Mounting Type | B (Band) |
| Lead time (days) | 10 |
| Minimum order quantity | 1 |
| Country of origin | CZ |
| TARIC code | 8412310090 |
- ISO 6432 Round Body Cylinder.
- Bore sizes (mm): 8, 10, 12, 16, 20, 25.
- Standard strokes up to 300 mm.
- Cylinder variations: Non-rotating, direct mount, ATEX.
Key features
- Double acting, single rod, crimped cylinder
- Conforms to ISO 6432 and CETOP RP52P
- Bore sizes (mm): 8, 10, 12, 16, 20, 25
- Standard strokes up to 300mm
- Auto switch capable
