SMC · Pilot Operated 3 Port Solenoid Valves

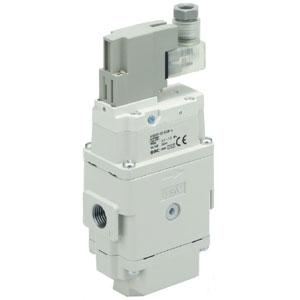

AV5000-F10S-5Y-A
excl. VAT · €241,45 incl. 20% VAT (BG)
Free delivery from €200
Free delivery from €200
Genuine SMC part · official SMC partner
VAT invoice, pay by card or bank transfer
Delivery up to 2 weeks
Need volume pricing or a special version? Request a quote →
| Part number | AV5000-F10S-5Y-A |
|---|
SOFT START-UP VALVE
Soft start-up valve Flow rate up to 11908 l/min (ANR) Optional built-in silencer Operating pressure range: 0.2 to 1.0 MPa IP65 enclosure.
Features
- Power consumption: 0,35 W
- Improved flow rate characteristics: Up to 2,3 times C[dm³/ (s·bar)]: 9,2
- Energy saving: No air flow when the main valve is switched
- Improved adjustability at low speed air supply
- Smaller profile and less work hours due to integrated silencer.
Specifications
- Part number: AV5000-F10S-5Y-A
- Item number: 02341647
- Body Size: 5000
- Thread: F (G)
- Port Size: 10 (1)
- Option: S (Silencer)
- Rated Voltage: 5 (24 VDC)
- Electrical Entry: Y (Type Y, DIN Terminal w/Connector)
- Surge Suppressor: None
- Manual Override: Non-locking Push Type
- Flow Direction/Pressure Unit: Flow direction: left to right
- Lead time: 25 days
- Country of origin: JP
