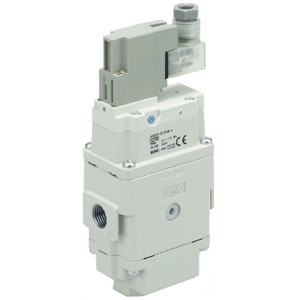

AV2000/3000/4000/5000-A, Soft Start-up Valve | AV2000-F02-5DZB-A

SOFT START-UP VALVE

Pilot operated soft start-up valve Low power consumption: 0.35 W (DC type) Improved flow rate by up to 2.2 times Better adjustability at low speed air supply Modular connection for connecting to F.R.L. units Optional built-in silencer IP65 enclosure.

Features

• Power consumption: 0,35 W
• Improved flow rate characteristics: Up to 2,3 times C[dm³/ (s·bar)]: 9,2
• Energy saving: No air flow when the main valve is switched
• Improved adjustability at low speed air supply
• Smaller profile and less work hours due to integrated silencer.

Specifications

• Part number: AV2000-F02-5DZB-A
• Item number: 01551441
• Body Size: 2000
• Thread: F (G)
• Port Size: 02 (1/4)
• Option: None
• Rated Voltage: 5 (24 VDC)
• Electrical Entry: D (Type D, DIN Terminal w/Connector)
• Surge Suppressor: Z (With light/surge voltage suppressor)
• Manual Override: B (Push-locking slotted style)
• Flow Direction/Pressure Unit: Flow direction
• Lead time: 5 days
• Country of origin: JP

Documents

• Catalogue
• Datasheet
• CAD model (STEP)
• Installation manual
• CE certificate
• CE certificate 2
