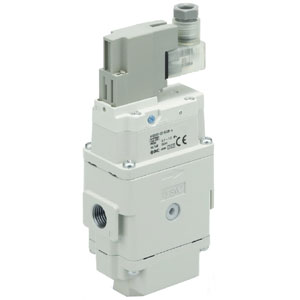

SOFT START-UP VALVE
Soft start-up valve Flow rate up to 11908 l/min (ANR) Optional built-in silencer Operating pressure range: 0.2 to 1.0 MPa IP65 enclosure.
Features
- Power consumption: 0,35 W
- Improved flow rate characteristics: Up to 2,3 times C[dm³/ (s·bar)]: 9,2
- Energy saving: No air flow when the main valve is switched
- Improved adjustability at low speed air supply
- Smaller profile and less work hours due to integrated silencer.
Specifications
- Part number: AV4000-F04S-5YB-A
- Item number: 01688001
- Electrical Entry: Y (Type Y, DIN Terminal w/Connector)
- Body Size: 4000
- Surge Suppressor: None
- Port Size: 04 (1/2)
- Flow Direction/Pressure Unit: Flow direction: left to right
- Option: S (Silencer)
- Manual Override: B (Push-locking slotted style)
- Thread: F (G)
- Rated Voltage: 5 (24 VDC)
- Lead time: 25 days
- Country of origin: JP
