SMC · Actuator Accessories

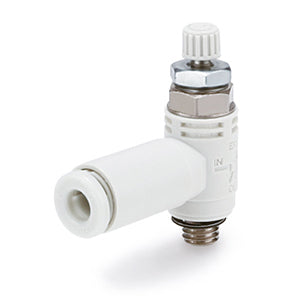

ASV410F-02-08S
excl. VAT · €31,19 incl. 20% VAT (BG)
Free delivery in BG from €80
Free delivery in the EU from €200
Genuine SMC part
In stock
| Part number | ASV410F-02-08S |
|---|---|
| Size | 4 (1/4 Basis) |
| Style | 1 (Union Tee) |
| Thread | M3, M5, U10/32, R |
| Port Size | 02 (R1/4) |
| Tube Size | Ø8 |
| Sealant | S [Sealant (01,02,03,04)] |
| Option | None |
| Made to Order | None |
| Lock Nut | Standard (Hexagon) |
| Lead time (days) | 5 |
| Minimum order quantity | 1 |
| Country of origin | JP |
| TARIC code | 8481209090 |
- The ASV series of speed exhaust controller is available in two styles depending on size. The ASV120F/220F are elbow styles that look like a standard speed controller. The ASV310F~510 are a tee-type design with twice the flow capacity of a standard speed controller and also add flame resistance for use in welding applications.
Key features
- Flame resistant resin (Equivalent to UL-94 Standard V-0)
- Port Size: M3, M5, 10-32 UNF, 1/8, 1/4, 3/8, 1/2
- Applicable Tubing O.D.: Ø 4 to Ø 12 mm and Ø 5/32" to Ø 1/2"
- Operating Pressure Range: 0.1 to 1 MPa.
