SMC · Actuator Accessories
ASD530FG-03-10S
excl. VAT · €78,08 incl. 20% VAT (BG)
Free delivery from €200
Free delivery from €200
Genuine SMC part · official SMC partner
VAT invoice, pay by card or bank transfer
Delivery up to 2 weeks
Need volume pricing or a special version? Request a quote →
| Part number | ASD530FG-03-10S |
|---|---|
| Body Size | 5 (3/8 Basis) |
| Port Size | 03 (3/8) |
| Applicable Tube OD | 10 (Ø10 mm) |
| Sealant | S (Sealant) |
| Made to Order | None |
| Lock Nut | Standard (Hexagon) |
| Lead time (days) | 18 |
| Minimum order quantity | 1 |
| Country of origin | JP |
| TARIC code | 8481209090 |

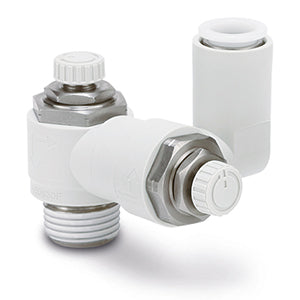

- Series ASD, combines a meter-in and meter-out dual speed controller in a single body. The series is available with PT or NPT ports and one-touch fittings are standard. Tamper proof and flat head screwdriver adjustable versions are also available for extra protection against inadvertent operation.
Key features
- Stainless Steel 303
- Enables bi-directional flow control
- Port Size: M5, 10-32 UNF, 1/8, 1/4, 3/8, 1/2
- Applicable Tubing O.D.: Ø 4 to Ø 12 mm and Ø 1/8" to Ø 3/8"
- Operating Pressure Range: 0.1 to 1 MPa.
