SMC · Actuator Accessories
ASD230F-M5-04
excl. VAT · €21,08 incl. 20% VAT (BG)
Free delivery in BG from €80
Free delivery in the EU from €200
Genuine SMC part
Delivery up to 2 weeks
| Part number | ASD230F-M5-04 |
|---|---|
| Body Size | 2 (M5 Basis) |
| Port Size | M5X0.8 |
| Applicable Tube OD | 04 (Ø4 mm) |
| Sealant | None |
| Made to Order | None |
| Lock Nut | Standard (Hexagon) |
| Lead time (days) | 5 |
| Minimum order quantity | 1 |
| Country of origin | JP |
| TARIC code | 8481209090 |

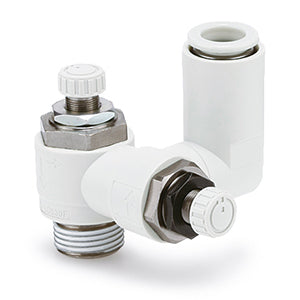

- Series ASD, combines a meter-in and meter-out dual speed controller in a single body. The series is available with PT or NPT ports and one-touch fittings are standard. Tamper proof and flat head screwdriver adjustable versions are also available for extra protection against inadvertent operation.
Key features
- Enables bi-directional flow control
- Port Size: M5, 10-32 UNF, 1/8, 1/4, 3/8, 1/2
- Applicable Tubing O.D.: Ø 4 to Ø 12 mm and Ø 1/8" to Ø 3/8"
- Operating Pressure Range: 0.1 to 1 MPa.
