SMC · Actuator Accessories
AS42R-G04-10
excl. VAT · €51,62 incl. 20% VAT (BG)
Free delivery from €200
Free delivery from €200
Genuine SMC part · official SMC partner
VAT invoice, pay by card or bank transfer
Delivery up to 2 weeks
Need volume pricing or a special version? Request a quote →
| Part number | AS42R-G04-10 |
|---|---|
| Body Size | 4 (1/2 Standard) |
| Thread Type | G (G) |
| Port Size | 04 (1/2) |
| Applicable Tubing O.D. | 10 (ø 10) |
| Lead time (days) | 20 |
| Minimum order quantity | 1 |
| Country of origin | JP |
| TARIC code | 8481209090 |

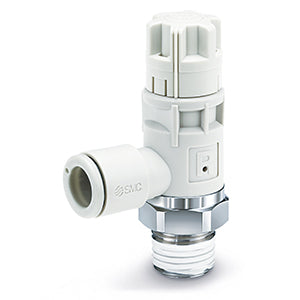

- Air Saving Speed Controllers, Elbow type
- Air consumption can be reduced by up to 31 %
- Same mounting and operation as a standard speed controller
- No delay in the response time with rapid supply and exhaust function
- Push-lock type handle
- Applicable tubing O.D.: Ø 6 to Ø 12
- Thread types: R, G, NPT.
Key features
- For maximum reduction of air consumption, this product should be used together with the AS-Q (https://www.smc.eu/en-eu/products/with-rapid-supply-and-exhaust-function-as-q~158011~cfg) series
- Port Size: 1/8, 1/4, 3/8, 1/2
- Applicable Tubing O.D.: Ø 6 to Ø 12 mm and Ø 1/4" to Ø 1/2"
- Operating Pressure Range: 0.3 to 0.7 MPa.
