SMC · Actuator Accessories

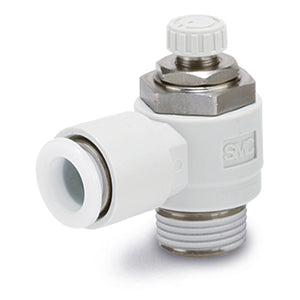

AS4201FG-04-12S
excl. VAT · €60,97 incl. 20% VAT (BG)
Free delivery in BG from €80
Free delivery in the EU from €200
Genuine SMC part
Delivery up to 2 weeks
| Part number | AS4201FG-04-12S |
|---|---|
| Model | AS42 (1/2 Basis - Elbow) |
| Control Method | 0 (Meter-out) |
| Port Size and Tube Size | 04-12 (Port Size R1/2 - Tube Size ø12) |
| Option | S (Sealant) |
| Made to Order | None |
| Lock Nut | Standard (Hexagon) |
| Lead time (days) | 5 |
| Minimum order quantity | 1 |
| Country of origin | JP |
| TARIC code | 8481209090 |
- Suitable for applications where copper free specifications are required, the "-FG" series can also be used in areas where wash down could degrade standard flow controls, such as food and packaging. This series is designed to offer the maximum control by increasing the number of turns of the needle to 10. The body and adjustment are made of high impact white resin for a clean look. This series also incorporates SMC's one-touch fitting available for tubing sizes from 4mm to 12mm OD.
Key features
- Stainless Steel 303
- Port Size: M5, 10-32 UNF, 1/8, 1/4, 3/8, 1/2
- Applicable Tubing O.D.: Ø 3.2 to Ø 12 mm and Ø 1/8" to Ø 1/2"
- Operating Pressure Range: 0.1 to 1 MPa.
