- Using SMC flow controls with built in one-touch fittings minimizes installation time, reduces mounting height and enables a more compact machine design. These flow controls allow the body to be rotated to facilitate simple installation. Available in thread sizes from M3 to 1/2 in both inch (NPT) and metric R(PT) and with tube sizes from 3.2mm to 12mm OD (metric) and 1/8 to 1/2 OD (inch) and with optional elbow and universal style (increased flexibility) and meter in and meter out, these flow controls are designed to meet most applications.
Key features
- Durable flow control
- Port Size: M5, 1/8, 1/4, 3/8, 1/2
- Applicable Tubing O.D.: Ø 4 to Ø 12 mm
- Operating Pressure Range: 0.1 to 1 MPa.
Specifications
- Size: 4 (1/2 Basis)
- Control Method: 0 (Meter-out)
- Port Size: 04 (1/2)
- Tube Size: Ø12
- Option: SN (Sealant + Nickel Plated)
Additional information

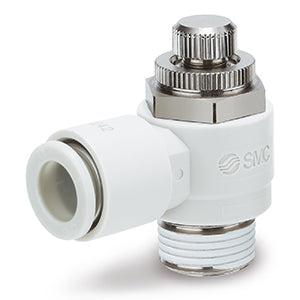

- Part number: AS4201F-04-12SN-X242-J
- Lead time (days): 23
- Minimum order quantity: 1
- Country of origin: JP
- TARIC code: 8481209090
