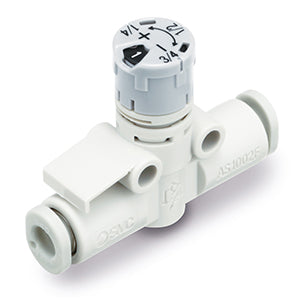

With Compact Indicator, In-line – AS*2FS-A – AS3002FS-10A

• Using SMC flow controls with built in one-touch fittings minimizes installation time, reduces mounting height and enables a more compact machine design. These flow controls allow the body to be rotated to facilitate simple installation. Available in thread sizes from M3 to 1/2 in both inch (NPT) and metric R(PT) and with tube sizes from 3.2mm to 12mm OD (metric) and 1/8 to 1/2 OD (inch) and with optional elbow and universal style (increased flexibility) and meter in and meter out, these flow controls are designed to meet most applications.

Key features

• Applicable Tubing O.D.: Ø 3.2 to Ø 6 mm and Ø 1/8" to Ø 1/4"
• Operating Pressure Range: 0.1 to 1 MPa.

Specifications

• Body Size: 300 (3/8 Standard)
• Applicable Tube O.D.: 10 (ø10)
• Made to Order: None

Additional information

• Part number: AS3002FS-10A
• Lead time (days): 3
• Minimum order quantity: 1
• Country of origin: JP
• TARIC code: 8481209090

Documents

• Catalogue (PDF)
• CAD model
• Operation manual
