SMC · Flow Control Equipment

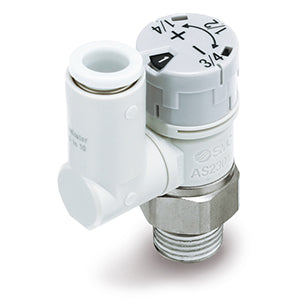

AS2301FSG-02-10SA
excl. VAT · €40,46 incl. 20% VAT (BG)
Free delivery from €200
Free delivery from €200
Genuine SMC part · official SMC partner
VAT invoice, pay by card or bank transfer
Delivery up to 2 weeks
Need volume pricing or a special version? Request a quote →
| Part number | AS2301FSG-02-10SA |
|---|---|
| Type | 3 (Universal) |
| Tubing | 10 (ø10) |
| Body Size | 2 (1/8, 1/4) |
| Control Type | 0 (Meter-out) |
| Port Size | 02 (1/4) |
| Seal | S (w/Sealant) |
| Thread | R (or None) |
| Made to Order | None |
| Minimum order quantity | 0 |
- Suitable for applications where copper free specifications are required, the “-FG” series can also be used in areas where wash down could degrade standard flow controls, such as food and packaging. This series is designed to offer the maximum control by increasing the number of turns of the needle to 10. The body and adjustment are made of high impact white resin for a clean look. This series also incorporates SMC’s one-touch fitting available for tubing sizes from 4mm to 12mm OD.
Key features
- Stainless Steel 303
- Thread: Metric, R or N
- Port Size: M5, 10-32 UNF, 1/8, 1/4, 3/8, 1/2
- Applicable Tubing O.D.: Ø 3.2 to Ø 12 mm and Ø 1/8" to Ø 1/2"
- Operating Pressure Range: 0.1 to 1 MPa.
