- Using SMC flow controls with built in one-touch fittings minimizes installation time, reduces mounting height and enables a more compact machine design. These flow controls allow the body to be rotated to facilitate simple installation. Available in thread sizes from M3 to 1/2 in both inch (NPT) and metric R(PT) and with tube sizes from 3.2mm to 12mm OD (metric) and 1/8 to 1/2 OD (inch) and with optional elbow and universal style (increased flexibility) and meter in and meter out, these flow controls are designed to meet most applications.
Key features
- Stainless Steel 303
- Port Size: M5, 10-32 UNF, 1/8, 1/4, 3/8, 1/2
- Applicable Tubing O.D.: Ø 3.2 to Ø 12 mm and Ø 1/8" to Ø 1/2"
- Operating Pressure Range: 0.1 to 1 MPa.
Specifications
- Clean Series: None
- Body Size: 2 (1/8, 1/4)

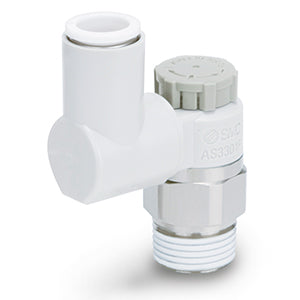

- Type: 3 (Universal)
- Control Type: 0 (Meter-out)
- Thread: R (or Metric)
- Port Size: 02 (1/4)
- Applicable Tubing O.D.: 06 (ø6)
- Seal: S (w/Sealant)
- Made to Order: None
Additional information
- Part number: AS2301FG-02-06SA
- Lead time (days): 18
- Minimum order quantity: 1
- Country of origin: JP
- TARIC code: 8481209090
