SMC · Check Valves
AS2201-G01-F06-X785
excl. VAT · €57,23 incl. 20% VAT (BG)
Free delivery from €200
Free delivery from €200
Genuine SMC part · official SMC partner
VAT invoice, pay by card or bank transfer
Delivery up to 2 weeks
Need volume pricing or a special version? Request a quote →
| Part number | AS2201-G01-F06-X785 |
|---|---|
| Body Size | 2 (1/8, 1/4) |
| Port Size | G01 (G 1/8) |
| Valve Side Applicable Tubing O.D. | 06 (ø6) |
| Sealant | w/o Sealant |
| Lead time (days) | 5 |
| Minimum order quantity | 1 |
| Country of origin | JP |
| TARIC code | 8481209090 |

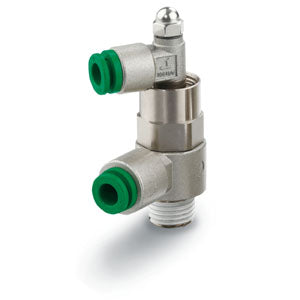

- Pilot check valve, Metal Body Type
- For drop prevention and temporary intermediate stops
- Three female thread / one-touch fitting port combinations
- Body sizes: 1/8, 1/4, 3/8, 1/2
- Applicable tubing O.D.: Ø 6 to Ø 12
- Thread types: G,R, Rc.
Key features
- Pilot Port: One-touch Fitting (ø6).
- Valve Side: One-touch Fitting (ø6, ø8, ø10).
- Cylinder Side: Male Thread (R, G)(1/8, 1/4, 3/8).
