SMC · Flow Control Equipment

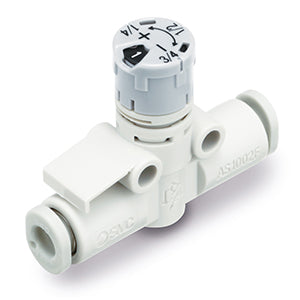

AS2052FS-08A
excl. VAT · €25,33 incl. 20% VAT (BG)
Free delivery from €200
Free delivery from €200
Genuine SMC part · official SMC partner
VAT invoice, pay by card or bank transfer
Delivery up to 2 weeks
Need volume pricing or a special version? Request a quote →
Total
Specs
| Max. operating pressure | 1.0 MPa |
|---|---|
| Proof pressure | 1.5 MPa |
| Temperature (ambient and fluid) | –5 to 60 °C (no freezing) |
| Part number | AS2052FS-08A |
|---|---|
| Body Size | 205 (1/4 Standard) |
| Applicable Tube O.D. | 08 (ø8) |
| Made to Order | None |
| Lead time (days) | 3 |
| Minimum order quantity | 1 |
| Country of origin | JP |
| TARIC code | 8481209090 |
- Using SMC flow controls with built in one-touch fittings minimizes installation time, reduces mounting height and enables a more compact machine design. These flow controls allow the body to be rotated to facilitate simple installation. Available in thread sizes from M3 to 1/2 in both inch (NPT) and metric R(PT) and with tube sizes from 3.2mm to 12mm OD (metric) and 1/8 to 1/2 OD (inch) and with optional elbow and universal style (increased flexibility) and meter in and meter out, these flow controls are designed to meet most applications.
Key features
- Applicable Tubing O.D.: Ø 3.2 to Ø 6 mm and Ø 1/8" to Ø 1/4"
- Operating Pressure Range: 0.1 to 1 MPa.
