SMC · Actuator Accessories

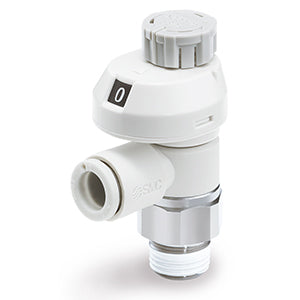

AS1201FS-M5-06
excl. VAT · €16,64 incl. 20% VAT (BG)
Free delivery from €200
Free delivery from €200
Genuine SMC part · official SMC partner
VAT invoice, pay by card or bank transfer
Delivery up to 2 weeks
Need volume pricing or a special version? Request a quote →
| Part number | AS1201FS-M5-06 |
|---|---|
| Clean Series | None |
| Body Size | 1 (M5 x 0.8, 10-32UNF) |
| Type | 2 (Elbow) |
| Control Type | 0 (Meter-out) |
| Indicator Direction | 0° |
| Thread | R (or None) |
| Port Size | M5 (M5 x 0.8) |
| Width Across Flats | 9 mm (or None |
| Tubing | 06 (ø6) |
| Seal | w/o Sealant |
| Made to Order | None |
| Lead time (days) | 5 |
| Minimum order quantity | 1 |
| Country of origin | IN |
| TARIC code | 8481209090 |
- Using SMC flow controls with built in one-touch fittings minimizes installation time, reduces mounting height and enables a more compact machine design. These flow controls allow the body to be rotated to facilitate simple installation. Available in thread sizes from M3 to 1/2 in both inch (NPT) and metric R(PT) and with tube sizes from 3.2mm to 12mm OD (metric) and 1/8 to 1/2 OD (inch) and with optional elbow and universal style (increased flexibility) and meter in and meter out, these flow controls are designed to meet most applications.
Key features
- Port Size: M5, 10-32 UNF, 1/8, 1/4, 3/8, 1/2
- Applicable Tubing O.D.: Ø 2 to Ø 16 mm and Ø 1/8" to Ø 1/2"
- Operating Pressure Range: 0.1 to 1 MPa.
