SMC · Actuator Accessories

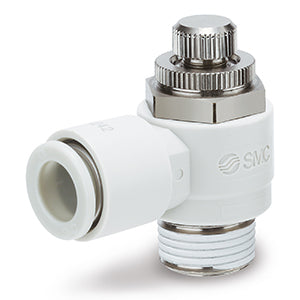

AS1201F-M5-06-X242-J
excl. VAT · €11,63 incl. 20% VAT (BG)
Free delivery from €200
Free delivery from €200
Genuine SMC part · official SMC partner
VAT invoice, pay by card or bank transfer
Delivery up to 2 weeks
Need volume pricing or a special version? Request a quote →
| Part number | AS1201F-M5-06-X242-J |
|---|---|
| Size | 1 (M3, M5 Basis) |
| Control Method | 0 (Meter-out) |
| Port Size | M5 (M5X0.8) |
| Tube Size | Ø6 |
| Option | None |
| Lead time (days) | 23 |
| Minimum order quantity | 1 |
| Country of origin | JP |
| TARIC code | 8481209090 |
- Using SMC flow controls with built in one-touch fittings minimizes installation time, reduces mounting height and enables a more compact machine design. These flow controls allow the body to be rotated to facilitate simple installation. Available in thread sizes from M3 to 1/2 in both inch (NPT) and metric R(PT) and with tube sizes from 3.2mm to 12mm OD (metric) and 1/8 to 1/2 OD (inch) and with optional elbow and universal style (increased flexibility) and meter in and meter out, these flow controls are designed to meet most applications.
Key features
- Durable flow control
- Port Size: M5, 1/8, 1/4, 3/8, 1/2
- Applicable Tubing O.D.: Ø 4 to Ø 12 mm
- Operating Pressure Range: 0.1 to 1 MPa.
