SMC · Silencers & Exhaust Cleaners
AN500-06
excl. VAT · €22,86 incl. 20% VAT (BG)
Free delivery from €200
Free delivery from €200
Genuine SMC part · official SMC partner
VAT invoice, pay by card or bank transfer
Next-business-day delivery in Bulgaria for in-stock parts
In stock
Need volume pricing or a special version? Request a quote →
| Part number | AN500-06 |
|---|

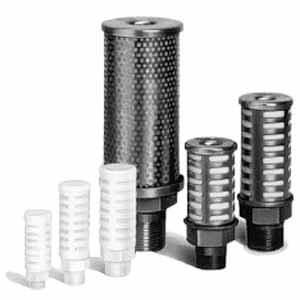

SILENCER
Series AN silencers offer various styles and low backpressure in a compact, easy mounting design. The high noise reduction style provides over 35dB(A) noise reduction and the case is UL94-V0 grade, flame resistant material. Series AN is available with R(PT) or NPT threads.
Features
- Fluid: compressed air
- Noise reduction: 25-35 dB(A) or more
- Maximum operating pressure: 1.0MPa
- Effective area mm 2 (Cv): AN*00 35-960 (1.9-53);
- AN*02 35-90 (1.9-5.0); AN*03 10-60 (0.6-3.3)
- Ambient & fluid temperature: 5 - 60° C
Specifications
- Part number: AN500-06
- Item number: 00001376
- Model: AN500-06 (Size 5-Standard, Noise Reduction-Standard (30 dB), Port Size 3/4)
- Lead time: 5 days
- Country of origin: JP
