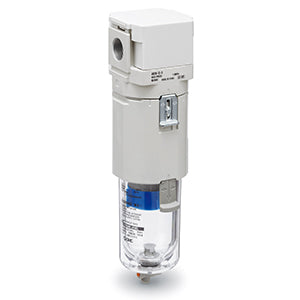

AMD20~40, Micro Mist Separator | AMD30-F03-L-D

MICRO MIST SEPARATOR

Features

• Modular style micro-mist separator compliant with ISO 8573
• Nominal filtration rating 0.01 µm
• Connection size 1/8 to 2.

Specifications

• Part number: AMD30-F03-L-D
• Item number: 02340299
• Size: 30
• Thread Type: F (G)
• Port Size: 03 (3/8)
• Mounting: w/o Mounting Option
• Float type auto drain: Without Auto drain
• Bowl: Sizes 20, 30, 40: Polycarbonate Bowl; Sizes 50, 60: Stainless Steel
• Drain Port: With Drain Cock
• Indicator: L (w/Element Service Indicator)
• Flow Direction: Left to Right
• Drain Cock w/Barb Fitting: None
• Pressure Unit: Name Plate and Pressure Gauge: MPa
• Lead time: 28 days
• Country of origin: CN

Documents

• Catalogue
• CAD model (STEP)
• Operation manual
• Operation manual 2
• Operation manual 3
