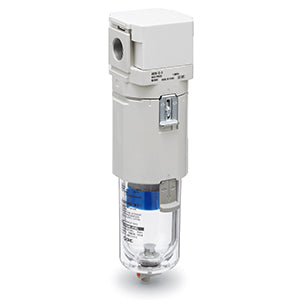

AMD20~40D, Micro Mist Separator | AMD30-F03-D

MICRO MIST SEPARATOR

Features

• Modular style micro-mist separator compliant with ISO 8573
• Nominal filtration rating 0.01 µm
• Connection size 1/8 to 1/2
• Maximum flow rate up to 1500 l/min (ANR)
• Transparent bowl guard.

Specifications

• Part number: AMD30-F03-D
• Item number: 02053836
• Size: 30
• Thread Type: F (G)
• Port Size: 03 (3/8)
• Mounting: w/o Mounting Option
• Float Type Auto Drain: w/o Auto Drain
• Bowl: Polycarbonate Bowl
• Drain Port: w/Drain Cock
• Flow Direction: Left to Right
• Drain Cock w/Barb Fitting: None
• Pressure Unit: Name Plate and Caution Plate for Bowl in SI Units
• Lead time: 5 days
• Country of origin: JP

Documents

• Catalogue
• CAD model (STEP)
• Operation manual
