AMD20~40, Micro Mist Separator | AMD20-F01C-D

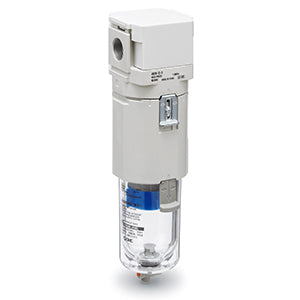

MICRO MIST SEPARATOR

Features

• Modular style micro-mist separator compliant with ISO 8573
• Nominal filtration rating 0.01 µm
• Connection size 1/8 to 2.

Specifications

• Part number: AMD20-F01C-D
• Item number: 02189821
• Mounting: w/o Mounting Option
• Drain Port: With Drain Cock
• Float type auto drain: C [N.C. (Normally Closed)]
• Drain Cock w/Barb Fitting: None
• Size: 20
• Port Size: 01 (1/8)
• Pressure Unit: Name Plate and Pressure Gauge: MPa
• Thread Type: F (G)
• Flow Direction: Left to Right
• Bowl: Sizes 20, 30, 40: Polycarbonate Bowl; Sizes 50, 60: Stainless Steel
• Indicator: w/o Indicator
• Lead time: 28 days
• Country of origin: JP
