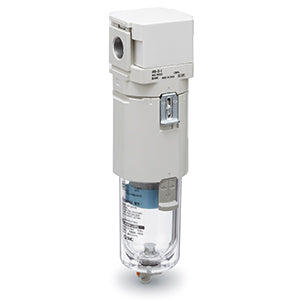

MIST SEPARATOR
The AM*-D mist separators are designed for modular connectability and to match the aesthetics of the AC-D series of FRL components. Flow capabilities are improved beyond the legacy AM series for extended applicability. These coalescing filters are nominally rated at 0.1 micron for an initial stage of oil removal after a particulate filter.
Features
- Modular style mist separator compliant with ISO 8573
- Nominal filtration rating 0.1 µm
- Connection size 1/8 to 1/2
- Maximum flow rate up to 1500 l/min (ANR)
- Transparent bowl guard.
Specifications
- Part number: AM40-F04-D
- Item number: 02134356
- Drain Port: With Drain Cock
- Mounting: w/o Mounting Option
- Float type auto drain: Without Auto drain
- Drain Cock w/Barb Fitting: None
- Size: 40
- Pressure Unit: Name Plate and Pressure Gauge
- Port Size: 04 (1/2)
- Flow Direction: Left to Right
- Thread Type: F (G)
- Bowl: Polycarbonate Bowl
- Lead time: 5 days
- Country of origin: JP
