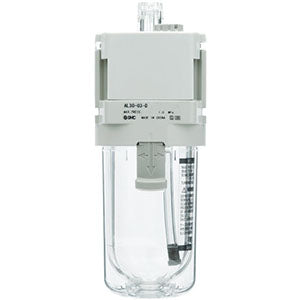

LUBRICATOR
Modular-style Lubricator Maximum flow rate up to 13000 l/min (ANR, 0.7MPa).
Features
- Maximum flow rate up to 8000 l/min (ANR, 0.7MPa).
Specifications
- Part number: AL30-F03-D
- Item number: 01999795
- Body Size: 30
- Thread: F (G)
- Port Size: 03 (3/8)
- Mounting: w/o Mounting Option
- Bowl: Polycarbonate Bowl
- Lubricant Exhaust Port: Standard
- Flow Direction: Left to Right
- Pressure Unit: Standard (Name Plate, Caution Plate for Bowl, and Pressure Gauge
- Lead time: 5 days
- Country of origin: JP
