SMC · Check Valves

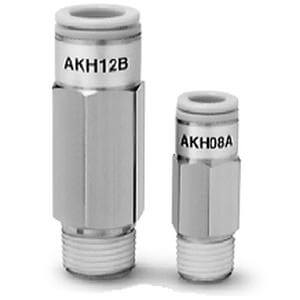

AKH10B-04S
excl. VAT · €33,23 incl. 20% VAT (BG)
Free delivery in BG from €80
Free delivery in the EU from €200
Genuine SMC part
Delivery up to 2 weeks
| Part number | AKH10B-04S |
|---|---|
| Applicable Tube OD | Ø10 mm |
| Port Size | 04S (1/2 + Sealant) |
| Free Flow Direction | B (One-touch Fitting to Male Thread) |
| Lead time (days) | 16 |
| Minimum order quantity | 1 |
| Country of origin | JP |
| TARIC code | 8481209090 |
- Series AK/AKH/AKB check valves offer various configurations to provide design solutions based on operating conditions. The series is compact and lightweight with low cracking pressure. The AKH with one-touch fitting, straight type, is easily installed in pipelines, while the male connector type can be mounted directly onto equipment. The bushing type AKB can be used in applications with splashing coolant and spatter, etc.
Key features
- Male connector type
- Easily mounted onto equipment
- One-touch fittings
- Compact and light weight
- Low cracking pressure (0.005MPa)
- Can be used for vacuum (-100kPa)
