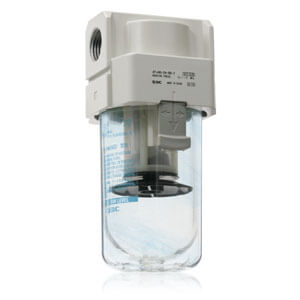

SMC · Vacuum Filters
AFJ20-F01B-5-S
excl. VAT · €49,45 incl. 20% VAT (BG)
Free delivery from €200
Free delivery from €200
Genuine SMC part · official SMC partner
VAT invoice, pay by card or bank transfer
Delivery up to 2 weeks
Need volume pricing or a special version? Request a quote →
| Part number | AFJ20-F01B-5-S |
|---|---|
| Body Size | 20 |
| Pipe Thread | F (G) |
| Port Size | 01 (1/8) |
| Mounting | B (With bracket) |
| Nominal Filtration Rating | 5 (5µ) |
| Type | S (Water Drop Removal Type) |
| Semi-standard | None |
| Lead time (days) | 28 |
| Minimum order quantity | 1 |
| Country of origin | CN |
| TARIC code | 8421392590 |
- Large flow type AFJ-T, up to 660 l/min, for dust removal.
- Water drop removal type AFJ-S, up to 500 l/min, for both dust and water droplets removal.
- Filtration rating: 5, 40, 80 µm.
- Port sizes: from 1/8 to 1/2.
- Standard options: bracket; bowl material, selectable flow direction.
Key features
- Large flow type AFJ-T, up to 660 l/min, for dust removal.
- Water drop removal type AFJ-S, up to 500 l/min, for both dust and water droplets removal.
- Filtration rating: 5, 40, 80 µm.
- Port sizes: from 1/8 to 1/2.
- Standard options: bracket; bowl material, selectable flow direction.
Documents
More part numbers in this series
AFJ20-F01-40-S€41,90AFJ20-F01-5-S€38,66AFJ20-F01-5-T€40,83AFJ20-F01B-40-S€44,47AFJ20-F01B-5-SThis itemAFJ20-F01B-5-T€39,16AFJ20-F02-40-S€38,91AFJ20-F02-40-T€40,90AFJ20-F02-5-S€35,89AFJ20-F02-5-T€37,93AFJ20-F02B-40-S€41,28AFJ20-F02B-40-T€41,34AFJ20-F02B-5-S€41,21AFJ20-F02B-5-T€38,50AFJ30-F03-40-S€51,48
