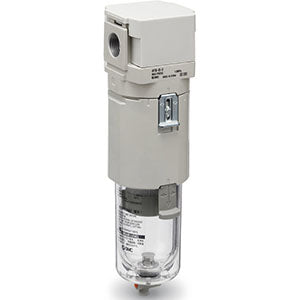

AFF20~40-D, Main Line Filter | AFF20-F02C-D

MAIN LINE FILTER

Features

• Modular style line filter compliant with ISO 8573
• Nominal filtration rating 1 µm
• Connection size 1/8 to 1/2
• Maximum flow rate up to 1500 l/min (ANR)
• Transparent bowl guard.

Specifications

• Part number: AFF20-F02C-D
• Item number: 02075718
• Drain Port: With Drain Cock
• Mounting: w/o Mounting Option
• Float type auto drain: C [N.C. (Normally Closed)]
• Drain Cock w/Barb Fitting: None
• Body Size: 20
• Pressure Unit: Name Plate and Pressure Gauge
• Port Size: 02 (1/4)
• Flow Direction: Left to Right
• Thread Type: F (G)
• Bowl: Polycarbonate Bowl
• Lead time: 5 days
• Country of origin: CN

Documents

• Catalogue
• CAD model (STEP)
