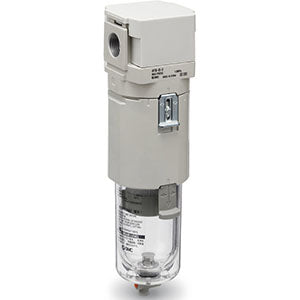

MAIN LINE FILTER
Features
- Modular style line filter compliant with ISO 8573
- Nominal filtration rating 1 µm
- Connection size 1/8 to 1/2
- Maximum flow rate up to 1500 l/min (ANR)
- Transparent bowl guard.
Specifications
- Part number: AFF20-F02-D
- Item number: 02163612
- Body Size: 20
- Thread Type: F (G)
- Port Size: 02 (1/4)
- Mounting: w/o Mounting Option
- Float type auto drain: Without Auto drain
- Bowl: Polycarbonate Bowl
- Drain Port: With Drain Cock
- Flow Direction: Left to Right
- Drain Cock w/Barb Fitting: None
- Pressure Unit: Name Plate and Pressure Gauge
- Lead time: 5 days
- Country of origin: JP
