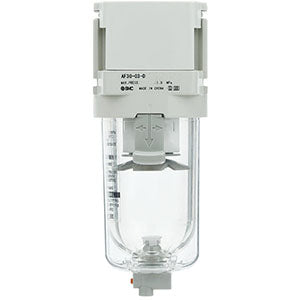

AIR FILTER
Modular-style air filter ISO 8573-1:2010 compliant Nominal filtration rating 5 µm Maximum flow rate up to 12500 l/min (ANR, 0.7MPa).
Features
- ISO 8573-1:2010 compliant
- Nominal filtration rating 5 µm
- Maximum flow rate up to 12500 l/min (ANR, 0.7MPa).
Specifications
- Part number: AF60-F10D-D
- Item number: 02225920
- Mounting: Standard
- Drain Port: Standard
- Float type auto drain: D [Float Type Auto Drain (N.O.)]
- Body Size: 60
- Drain Cock w/Barb Fitting: None
- Port Size: 10 (1)
- Pressure Unit: Name Plate and Pressure Gauge: MPa
- Bowl type: Standard (Polycarbonate Bowl)
- Flow Direction: Left to Right
- Thread: F (G)
- Lead time: 115 days
- Country of origin: CN
