SMC · Grippers & Escapements

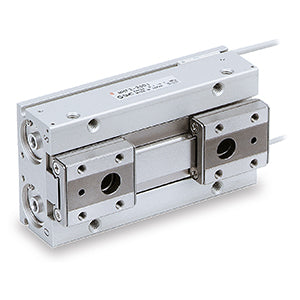

MHF2-12DR
HT · €631,36 TTC (TVA 20 % BG)
Livraison gratuite en BG dès 80 €
Livraison gratuite dans l’UE dès 200 €
Pièce SMC d’origine
Delivery up to 2 weeks
| Référence | MHF2-12DR |
|---|---|
| Parallel gripper | |
| flat design | |
| Ø12 | |
| double acting | |
| ports M5 | |
| gripping force | 48 N |
| side ported | |
| Country of origin | JP |
| TARIC code | 8479899790 |
Standard - MHF2
Key features
- Maximum gripping force per finger 141 N at 0.5 MPa
- Double acting
- Repeatability: ±0.05 mm
- Max. operating frequency: 120 c.p.m.
