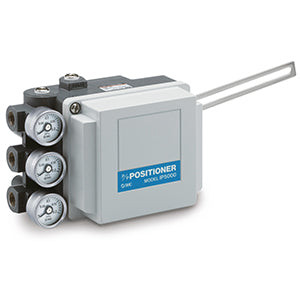

IP5000, Pneumatic-Pneumatic Positioner, Lever Type – IP5000-030

Key features

• Sensitivity: Within ±0.1 % F.S (single action)
• Repeatability: Within ±0.5 % F.S
• Ambient and fluid temperatures: -20 to 80 °C
• Option: high temperature (100 °C)
• Pneumatic input: 0.02 to 0.1 MPa.

Specifications

• Input Pressure: 0 [Standard (0.02 to 0.1 MPa)]
• Pressure Gauge: 3 (1.0 MPa)
• Ambient Temperature: Standard (-20 to 80°C)
• Pressure Gauge/Air Port: Rc
• Accessories: None
• Lever: None

Additional information

• Part number: IP5000-030
• Lead time (days): 5
• Minimum order quantity: 1
• Country of origin: JP
• TARIC code: 9032810000

Documents

• Catalogue (PDF)
• CAD model
