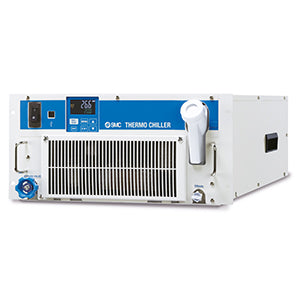

SMC · Circulating Fluid Temperature Controller
HRR024-WF-20-U
HT · €10.402,49 TTC (TVA 20 % BG)
Livraison gratuite en BG dès 80 €
Livraison gratuite dans l’UE dès 200 €
Pièce SMC d’origine
| Référence | HRR024-WF-20-U |
|---|---|
| Cooling Capacity | 024 [2000/2400, (50/60 Hz)] |
| Cooling Method | W (Water-cooled) |
| Pipe Thread | F (G, w/Rc-G Conversion Fitting) |
| Power Supply | 20 [Single-phase 200 to 230 VAC (50/60 Hz)] |
| DI Water Piping | None |
| High-pressure Pump Mounted | None |
| Suffix | U (Conforming to UL Standards) |
| Feet | None |
| Flow Sensor | None |
| Lead time (days) | 120 |
| Minimum order quantity | 1 |
| Country of origin | JP |
| TARIC code | 8418690091 |
- Can be mounted in a 19-inch rack
Key features
- Cooling capacity: 0.95 to 5 kW (50 Hz)
- Temperature stability: ±0.1°C
- Set temperature range: 5 to 35 °C; 15 to 35 °C (HRR010)
- Space Saving
- With heating function and self-diagnosis.
