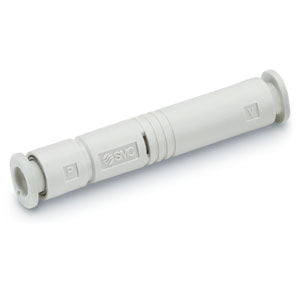

ZU*A, In-line Type Vacuum Ejector – ZU03SA

ZU*A, In-line Type Vacuum Ejector

Key features

• Maximum flow rate: 16 l/min (ANR).
• Maximum vacuum pressure: -90 kPA.
• Nozzle diameters: 0.3, 0.4, 0.5 and 0.7 mm.
• Dimensions: Overall length 47 to 59 mm. Ø 8.2 to 10.4 mm.
• Weight: 2.4 to 4.3 g.

Specifications

• Vacuum ejector In-line
• vacuum -85kPa
• nozzle Ø0.3mm
• push-in Ø4
• max.suction flow 1.8l/min
• standard pressure 0.35MPa
• air consumption 3.7l/min

Additional information

• Part number: ZU03SA
• Country of origin: JP
• TARIC code: 8414108990

Documents

• Operation manual
• CAD model (STEP)
