SMC · Grippers & Escapements
MHY2-16D2
zzgl. MwSt. · €369,64 inkl. 20 % MwSt. (BG)
Kostenlose Lieferung in BG ab 80 €
Kostenlose Lieferung in der EU ab 200 €
Original SMC-Teil
Delivery up to 2 weeks
| Artikelnummer | MHY2-16D2 |
|---|---|

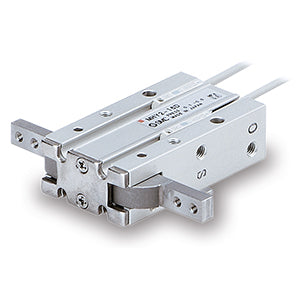

| Angular gripper with cam mechanism | |
| Ø16 | |
| double acting | |
| ports M5 | |
| holding torque per jaw | 0.55 Nm |
| opening/closing angle | 180 / -3 |
| radial ports | |
| through holes | |
| Country of origin | JP |
| TARIC code | 8479899790 |
Cam Style - MHY2
Key features
- Maximum gripping moment 2.28 Nm at 0.5 MPa
- Finger opening angle from -3° to 180°
- Double acting
- Repeatability: ±0.2 mm
- Max. operating frequency: 60 c.p.m.
