SMC · Process Valves
LVA10-01F-A
zzgl. MwSt. · €295,48 inkl. 20 % MwSt. (BG)
Kostenlose Lieferung in BG ab 80 €
Kostenlose Lieferung in der EU ab 200 €
Original SMC-Teil
| Artikelnummer | LVA10-01F-A |
|---|---|
| Body Class | 1 (Class 1, Orifice ø2) |
| Valve Type | 0 (Normally Closed) |
| Port Size | 01 (1/8) |
| Thread | F (G) |
| Material | A (Body: SUS, Endplate: PPS, Diaphragm: PTFE) |
| Option | None |
| Specification | None |
| Z | None |
| Lead time (days) | 27 |
| Minimum order quantity | 1 |
| Country of origin | JP |
| TARIC code | 8481808790 |

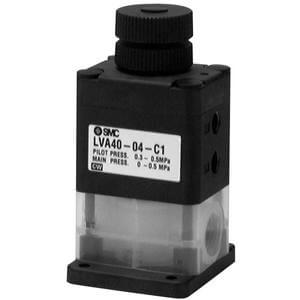

- High purity valve for chemical liquid, air operated
- Applicable fluid: Chemical liquid (acetone, isopropyl alcohol, sulfuric acid, deionized water...)
- High flow rates up to 113 l/min. Orifice diameter: 2 to 22 mm
- Port size: 1/8 to 1
- Body material: PFA, stainless steel or PPS
- Options: With flow rate adjustment, with indicator, with by-pass, high back pressure (0.5 MPa) tolerant, Low water hammer type, body wetted parts equivalent to EP grade.
Key features
- High purity chemical valve, single type
- Threaded ports, air operated type
- Operating pressure: 0.3 ~ 0.5 MPa
- Fluid temperature: 0 to 100°C
- Port sizes: 1/8, 1/4, 3/8, 1/2, 3/4, 1
