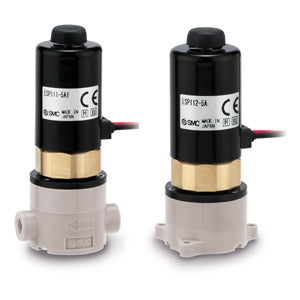

LSP, Liquid Dispense Pump – LSP111-6A2

• Liquid dispense pump
• Dispense volume up to 200 µl
• Repeatability: ±1%
• Adjustment of dispense volume is possible
• Shut-off function
• Self-contained system.

Key features

• Dispense volume up to 200 µl.
• Repeatability: ±1%.
• Adjustment of dispense volume is possible.
• Shut-off function.
• Self-contained system.

Specifications

• Dispense Volume: 1 (5 to 50 μL)
• Type: 1 (Body Ported)
• Rated Voltage: 6 (12 VDC)
• Fluid Contact Material: A (Body: PEEK; Diaphragm: EPDM; Check Valve: EPDM)
• Port Size: 2 (M6)

Additional information

• Part number: LSP111-6A2
• Lead time (days): 22
• Minimum order quantity: 1
• Country of origin: JP
• TARIC code: 8413508090

Documents

• Catalogue (PDF)
• CAD model
• Operation manual
• Installation manual
• CE certificate
