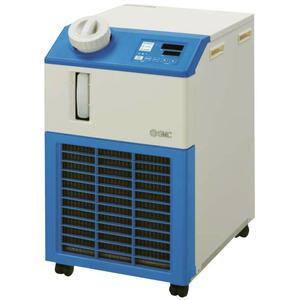

- Circulating Fluid Temperature Controller. Water or Air-cooled
- Cooling capacity: From 1.1 to 38 kW (50 Hz)
- Temperature stability: ±0.1 °C to ± 1 °C
- Set temperature range: -10-45 °C
- With heating function and self-diagnosis
- Serial communication
- Compact and lightweight.
Key features
- Compact and lightweight.
- Temperature stability ± 0.1 ºC.
- Improved maintenance performance.
- Heating function available even with no heater.
Specifications
- Cooling Capacity: 024 [Cooling capacity: 2100/2400 W (50/60 Hz)]
- Cooling Method: A (Air-cooled Refrigeration)
- Thread: Rc
- Power Supply: 20 [Single-phase 200 to 230 VAC (50/60 Hz)]
- Earth Leakage Breaker: None
- High ambient temperature: None
- Automatic fluid fill: None
- DI Water Piping: None
- High-pressure pump: T (High-Lift Pump)
- Units: None
Additional information
- Part number: HRS024-A-20-T
- Lead time (days): 13
- Minimum order quantity: 1
- Country of origin: CZ
- TARIC code: 8418690091
