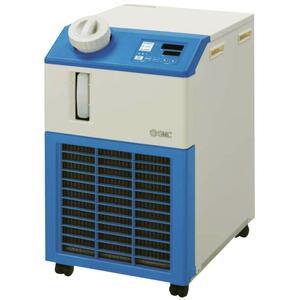

- Circulating Fluid Temperature Controller. Water or Air-cooled
- Cooling capacity: From 1.1 to 38 kW (50 Hz)
- Temperature stability: ±0.1 °C to ± 1 °C
- Set temperature range: -10-45 °C
- With heating function and self-diagnosis
- Serial communication
- Compact and lightweight.
Key features
- Compact and lightweight.
- Temperature stability ± 0.1 ºC.
- Improved maintenance performance.
- Heating function available even with no heater.
Specifications
- Automatic fluid fill: None
- High-pressure pump: None
- Cooling Method: A (Air-cooled Refrigeration)
- High ambient temperature: None
- Earth Leakage Breaker: None
- Cooling Capacity: 018 [Cooling capacity: 1500/1700 W (10) - 1700/1900 W (20) (50/60 Hz)]
- DI Water Piping: None
- Units: None
- Thread: Rc
- Power Supply: 20 [Single-phase 200 to 230 VAC (50/60 Hz)]
Additional information
- Part number: HRS018-A-20
- Lead time (days): 6
- Minimum order quantity: 1
- Country of origin: JP
- TARIC code: 8418690091
