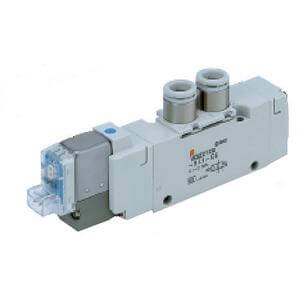

SMC · Pilot Operated 4/5 Port Solenoid Valves
VQZ3321-5MO1-C6F-Q
excl. VAT · €129,60 incl. 20% VAT (BG)
Free delivery from €200
Free delivery from €200
Genuine SMC part · official SMC partner
VAT invoice, pay by card or bank transfer
Delivery up to 2 weeks
Need volume pricing or a special version? Request a quote →
| Part number | VQZ3321-5MO1-C6F-Q |
|---|
5 PORT SOLENOID VALVE
Series VQZ base mount solenoid valves combine convenience with durability and performance in a more traditional mounting style. Series VQZ Body Ported Solenoid Valves combine flexibility with high performance and long life in an inline body style.
Features
- Fluid: air, inert gas
- Operating pressure range: 0.1 - 0.7MPa
- Effective area mm 2 (Cv):
- metal seal 2.0 (0.11) - 12.6 (0.7);
- rubber seal 3.1 (0.17) - 16.2 (0.9)
- Coil rated voltage: 12, 24VDC;
- 100, 110, 200, 220VAC
- Response time (ms) standard 1W, high pressure 1.5W:
- metal seal 25 or less; rubber seal 30 or less
- Ambient & fluid temperature: -10 to 50°C
Specifications
- Part number: VQZ3321-5MO1-C6F-Q
- Item number: 03026725
- Series: 3 (VQZ3000)
- Function: Standard (0.35W DC, AC)
- Electrical Entry: MO (M Plug w/o Connector, w/Light & Surge Suppressor)
- Type of actuation: 3 (3 Position Closed Centre)
- Foot Bracket: None
- Seal Type: 1 (Rubber Seal)
- IP65 Compliant: No
- Port Size: C6 (ø6 One-touch Fitting)
- Coil Voltage: 5 (24VDC)
- CE Compliant: Q (CE Marked)
- Manual Override: Non-locking Push Style
- Thread: F (G)
- Lead time: 29 days
- Country of origin: JP
