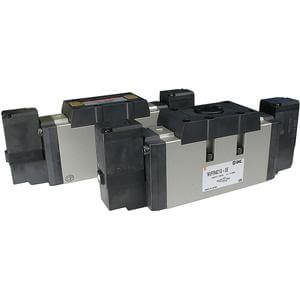

VFR4000, Plug-in & Non Plug-in Types, Metric | VFR4210-5DZ-Q

SOLENOID VALVE

Series VFR consists of 5 port pilot solenoid valves with rubber seals and base mounted type manifolds, available in plug-in and non plug-in styles. Port sizes range from 1/8 to 1/2 with Rc(PT), NPTF & G(PF) thread types available. Various options also available.

Features

• VFR4000, plug-in & non plug-in types
• Maximum operating pressure: up to 0.9MPa
• Ambient & fluid temperature: Max. 50°C
• Manual override: non locking push style.

Specifications

• Part number: VFR4210-5DZ-Q
• Item number: 00056560
• Function: 2 (2 Position Double)
• Body Option: 1 (Non Plug-in Centralized Lead Wire Entry)
• Option: 0 (Standard)
• Pilot: Internal Pilot
• Voltage: 5 (24VDC)
• Lead Wire: D (DIN Connector)
• Surge Suppressor: Z (Light & Surge Suppressor)
• Manual Override: Non-locking Push Style (Flush)
• Piping: Side
• Port Size: w/o Sub-plate
• Thread: Rc
• Q: Q (CE Marked)
• Lead time: 26 days
• Country of origin: JP

Documents

• Catalogue
• CAD model (STEP)
• Operation manual
• Installation manual
